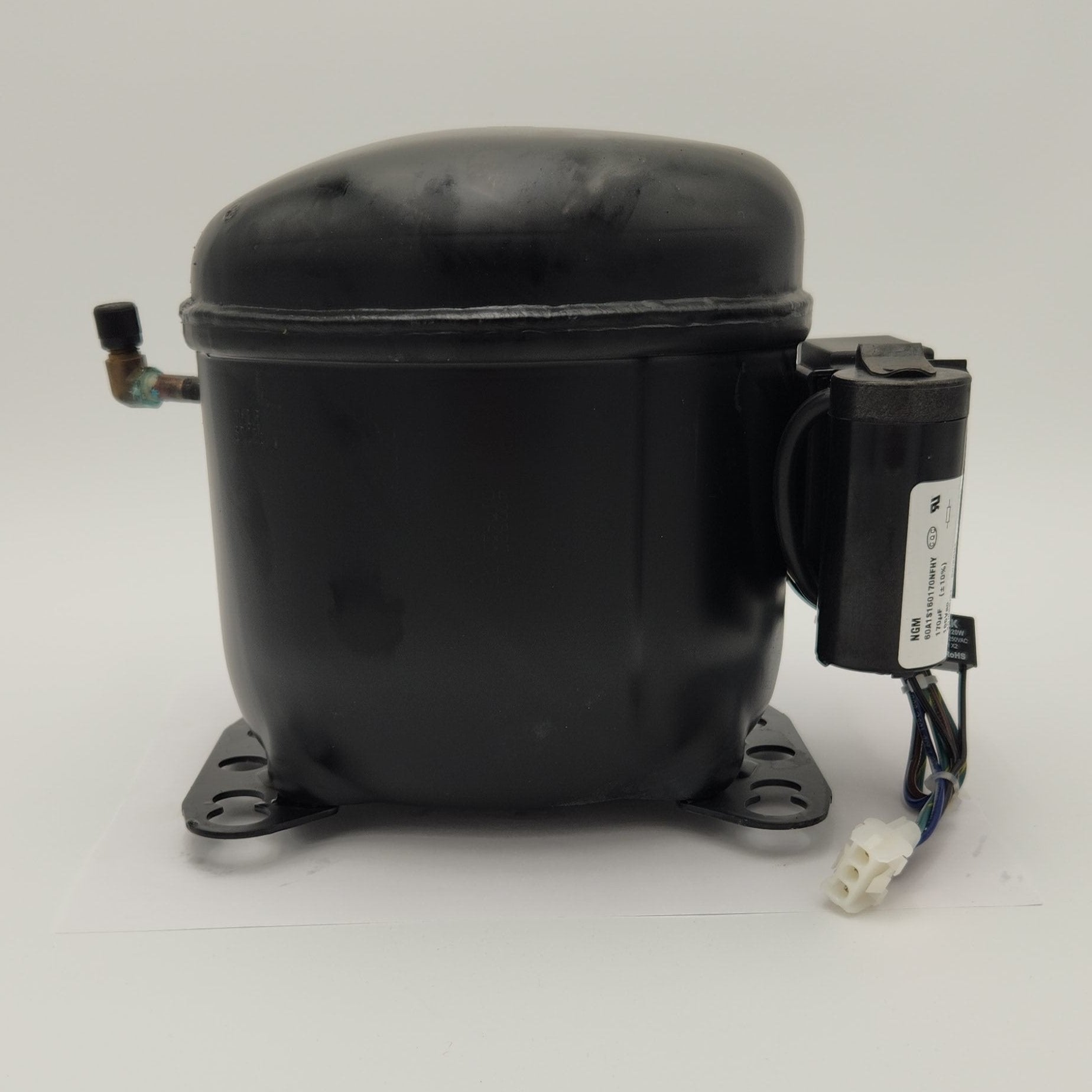

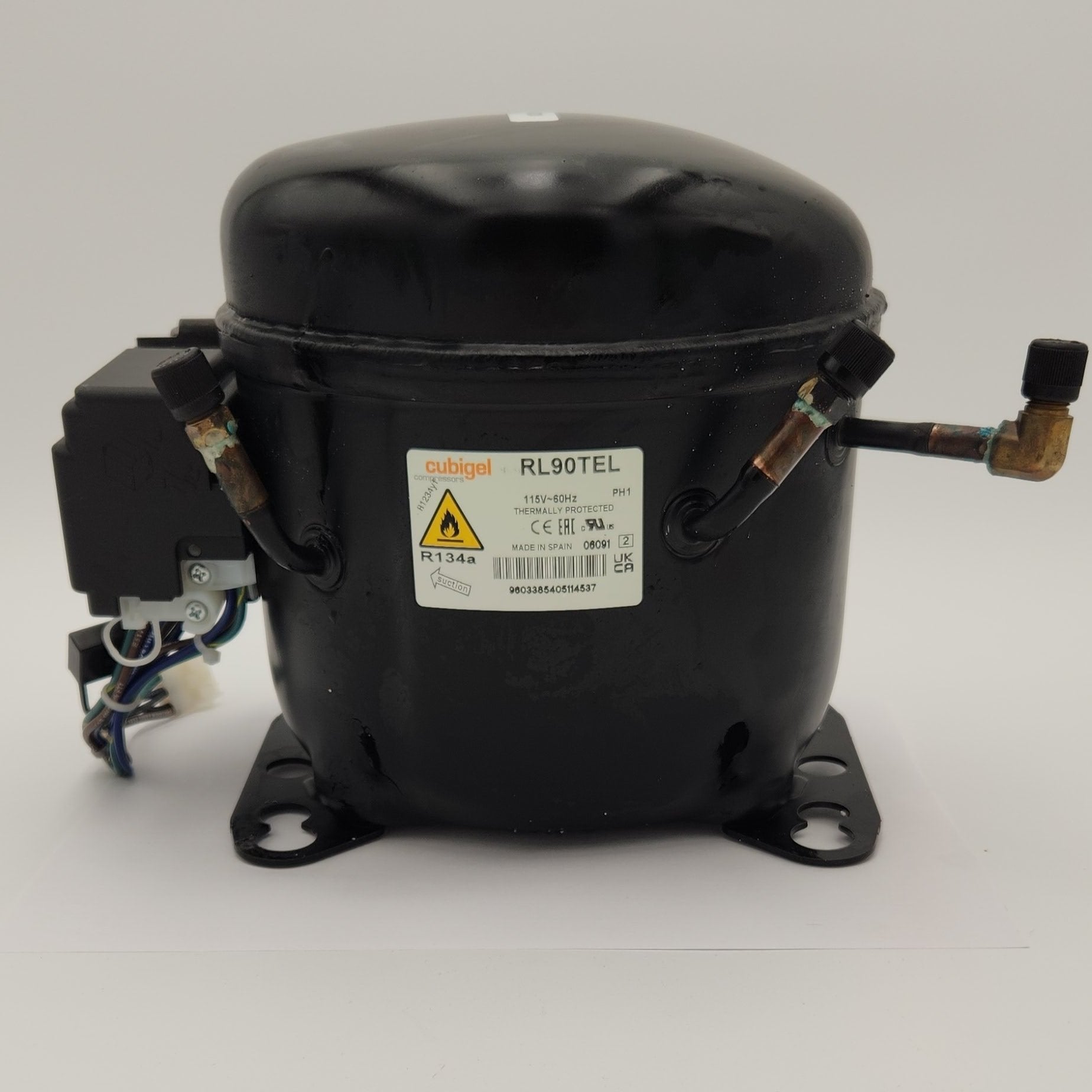

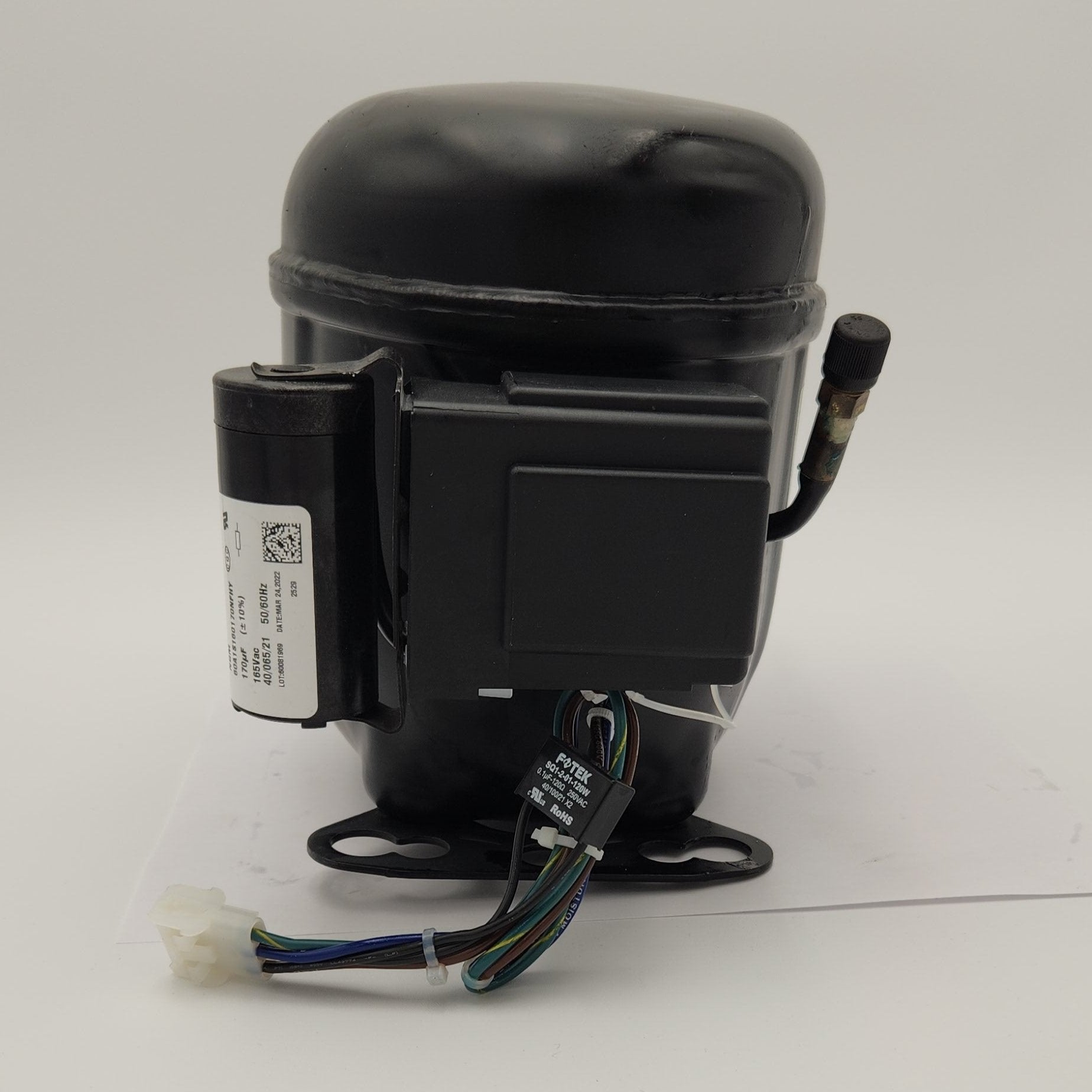

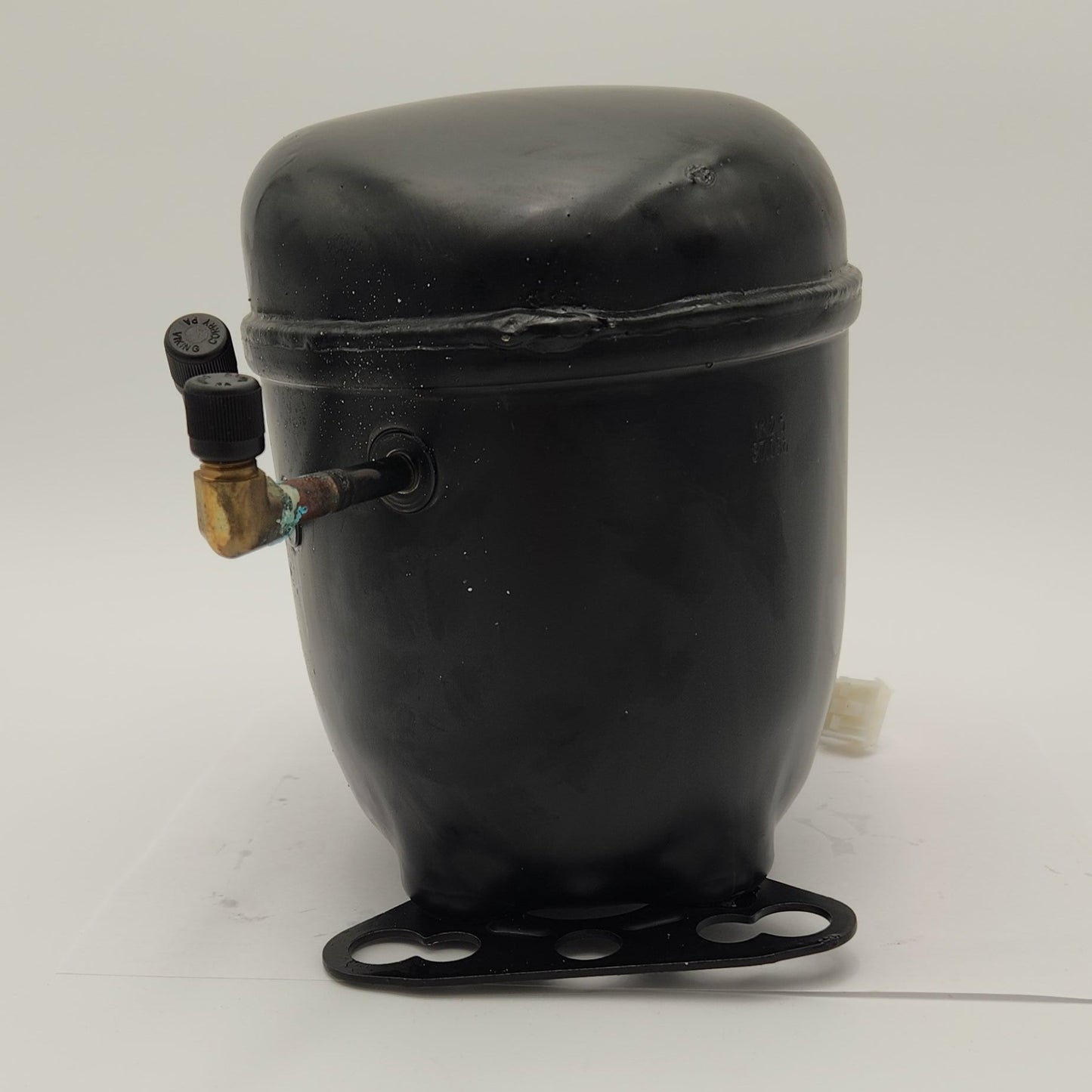

RA19865 115V Cubigel Compressor

Bay 2 Rack 1 Shelf 5 - Superseded by PN: RA30054

Product Features
115 Volt Cubigel Compressor
Replaces The RA17110, RA17434, RA19458, & RA19748
Includes all hardware and electrical for a complete install
See additional plumbing retrofit kits noted for older style units
If replacing older compressors it will be necessary to purchase a retro-fit kit for the tubing.
See Technical Specs for details

Capacity (BTU/HR): 5821
Running Amps: 8.4A
Speed: 3500 RPM
Locked Rotor Amps: 30.0A
Oil Charge Capacity: Initial - 13.5 oz Recharge - 11.8 oz
Refrigerants: R-12, 22, 500, 502, 134a, 404a
POE Oil Type: 150 Viscosity
Weight w/oil: 23.8 lbs.
