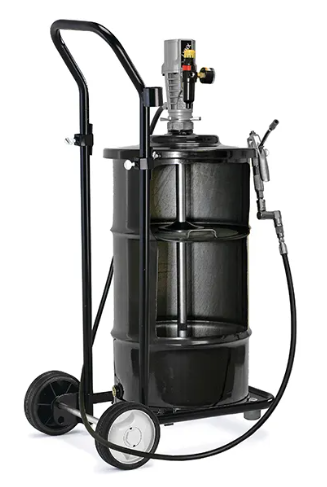

1151-028 Lynx55:1, 120 lb Portable Package

Bay 2 Rack 5 Shelf 5

120 Lb Portable Package-1151-028 Includes:
 Bare Pump-1150-023
 Bung Adapter-4411-023
 Fluid Hose (10’ x 3/8”)-8331-010
 F/R Auto Drain 1/4" NPT(F)-3260-033
 Follower Plate-4440-014
 Drum Cover-4420-011
 Band Dolly-4310-001
 Comfort Grip Grease Handle-3310-030

*Drum and pail not included

FEATURES:

*Design provides even distribution on each stroke allowing for long seal life.
*Double acting pump design pumps product on both the up and down stroke, providing smooth and reliable flow and pressure.
*Positive pump priming with hardened foot valve minimizes pump damage due to contaminates. Corrosion proof air motor design tolerates moisture in compressed air.
*On-demand operation adjusts speed to match system flow and pressure requirements. *When the dispense valve is closed the pump stops.
*One toggle driven air valve mechanism for fast and accurate reversing action.
*Precision machined and hardened upper ball check to tolerate small impurities in the grease.
*Internal filter mesh for reliable pump operation.


SPECIFICATIONS:

Pump ratio: 55:1

Operating air pressure range: 40-140 psi (3-10 bar)

Pump delivery, 100 psi (7 bar) air pressure and free flow: 1.2 lb/M (.54 kg/M)

Air consumption 100 psi (7 bar) & 8 gal/m (30 l/m): 8.1 SCFM

Max fluid stall pressure @150 psi (10 bar) air: 1,300 psi (90 bar)

Cycles per lb: 67

Air inlet: 1/4” NPT(F)

Fluid outlet: 1/4” NPT(F)

Effective Air Piston Diameter: 2 3/4” (70 mm)

Wetted materials Steel, Zinc, Buna-N™, PTFE (Teflon®)
